| Ask Lasest Price | |
| Model Number : | RSL5S5-68-T4 |
| Certification : | ENEC, CE, RoHS, CB |
| Price : | Negotiable |
| Payment Terms : | T/T, L/C, Paypal |
| Supply Ability : | 20,000 Pieces per Month |
| Delivery Time : | 3-5 working days for sample, 7-15 working days for mass production |

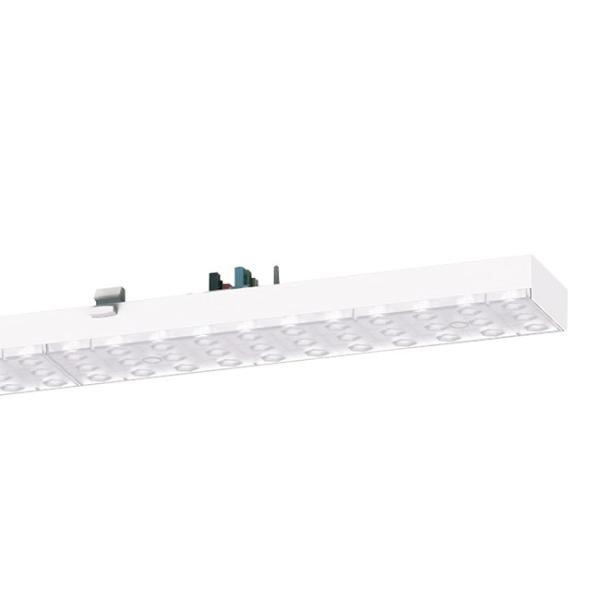

5ft DALI dimmable max 11,000lm white housing aluminium Led Linear Lighting System
Datasheet for LED module:
| Item | Model NO. | Watt | Lumen | Efficacy | Function | EEC | L*W*H(mm) |
| 1 | RSL5S5-68-T4 | Max 68W | 10,500lm | 160LM/W | DALI | A++ | 1438*65*27 |
Maximum Loading:
| RSL5S5-68-T4 | |
| B10 | 13 |
| B16 | 21 |
| C10 | 21 |
| C16 | 35 |
Datasheet for trunkings:
| Item | Model NO, | Wires(mm²) | Dimensions(mm) | Weight(KG) |
| 1 | TKA5-07W-00 | 7 x2.5 mm² | 1438x 65 x 65 | 1.65 |
| 2 | TKA5-11W-00 | 11 x2.5 mm² | 1438x 65 x 65 | 1.95 |
| 3 | TKA9-07W-00 | 7 x2.5 mm² | 2876x 65 x 65 | 2.98 |
| 4 | TKA9-11W-00 | 11 x2.5 mm² | 2876x 65 x 65 | 3.25 |
Accessories:
FAQ:
Q1. What's the dimming range for the product?
A: We can do 0-100% dimming and 30-100% dimming.
Q2. What about the lead time?
A: Sample order: 3~5 working days Bulk order: 20~30 working days
after deposit/ full payment, it will depend on the quantity.
Q3. Can I use another branded driver for this linear light?
A: We can also use DALI driver, power range is 20W-68W, the same
with Tridonic driver.
For more information, welcome to visit our website www.recolux.com.
| RSL5S5-68-T4 |
|
|
