| Ask Lasest Price | |
| Model Number : | RIP5S-60-S1 |
| Certification : | ENEC, CE, RoHS, CB |
| Price : | Negotiable |
| Payment Terms : | T/T, L/C, Paypal |
| Supply Ability : | 15,000 Pieces per Month |
| Delivery Time : | 3-5 working days for sample, 7-15 working days for mass production |

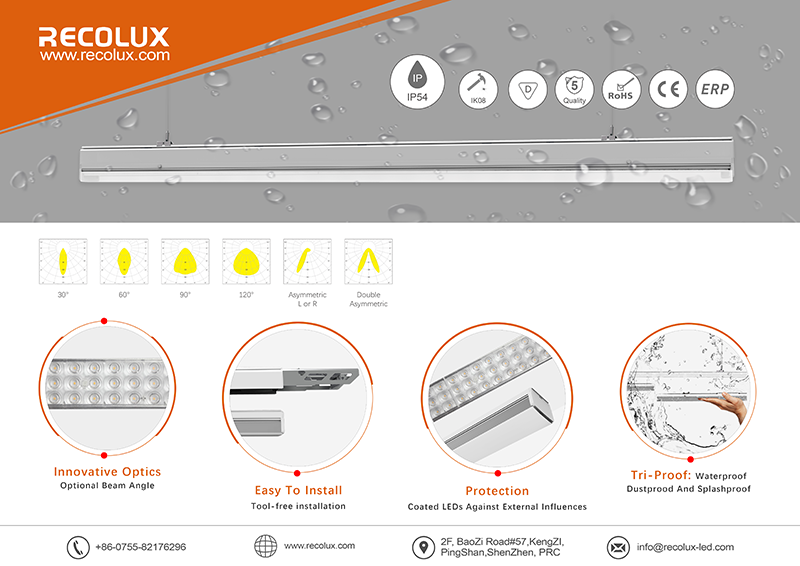

Up to 180 lm/w ip54 toolless mounting dustproof dali dimmable recessed led linear lighting
Datasheet for LED module:
| Item | Model NO. | Watt | Lumen | Efficacy | Function | EEC | L*W*H(mm) |
| 1 | RIP5S-60-S1 | 60W-50W-42W-32W | 9,000lm | 160LM/W | On/off | A++ | 1451*65*27 |
| 2 | RIP5S-60-V1 | 60W-50W-42W-32W | 9,000lm | 160LM/W | On/off | A++ | 1451*65*27 |
| 3 | RIP5S-68-PC | 68W-60W-54W-48W-38W 32W-25W-20W by switch | 10,500lm | 160LM/W | On/off | A++ | 1451*65*27 |
| 4 | RIP5S-72-B3 | 72W-68W-64W-60W-56W-54W-52W-50W-48W-45W | 10,500lm | 160LM/W | 0-10V | A++ | 1451*65*27 |
| 5 | RIP5S-68-T4 | Max 68W | 10,500lm | 160LM/W | DALI | A++ | 1451*65*27 |
Maximum Loading:
| RIP5S-60-S1 | RIP5S-60-V1 | RIP5S-68-PC | RIP5S-72-B3 | RIP5S-68-T4 | |
| B10 | 12 | 13 | 15 | 15 | 13 |
| B16 | 19 | 21 | 24 | 25 | 21 |
| C10 | 20 | 22 | 25 | 27 | 21 |
| C16 | 32 | 35 | 40 | 42 | 35 |
Datasheet for trunkings:
| Item | Model NO, | Wires(mm²) | Dimensions(mm) | Weight(KG) |
| 1 | TKB5-05W-00 | 5 x2.5 mm² | 1450x 65 x 65 | 1.59 |
| 2 | TKB5-07W-00 | 7 x2.5 mm² | 1450x 65 x 65 | 1.65 |
| 3 | TKB5-11W-00 | 11 x2.5 mm² | 1450x 65 x 65 | 1.95 |
| 4 | TKB9-05W-00 | 5 x2.5 mm² | 2900x 65 x 65 | 2.85 |
| 5 | TKB9-07W-00 | 7 x2.5 mm² | 2900x 65 x 65 | 2.98 |
| 6 | TKB9-11W-00 | 11 x2.5 mm² | 2900x 65 x 65 | 3.25 |
Accessories:
FAQ:
Q1. Do you have other led lights?
A: Yes, we also have IP20 LED Linear Trunking System, LED Batten, LED
Track Panel, etc.
Q2. What are functional products?
A: Such as 0-10v dimming, DALI dimming, emergency, motion sensor etc.
For more information, welcome to visit our website www.recolux.com.
| RIP5S-60-S1 |
|
|
